Hydraulic Patient Transfer Stretcher Trolley for Efficient Hospital Transportation
Efficient patient transportation requires more than a mobile stretcher. Hospitals need equipment that allows caregivers to adjust patient positioning, control movement, secure the trolley during transfers and access the patient conveniently during nursing procedures.

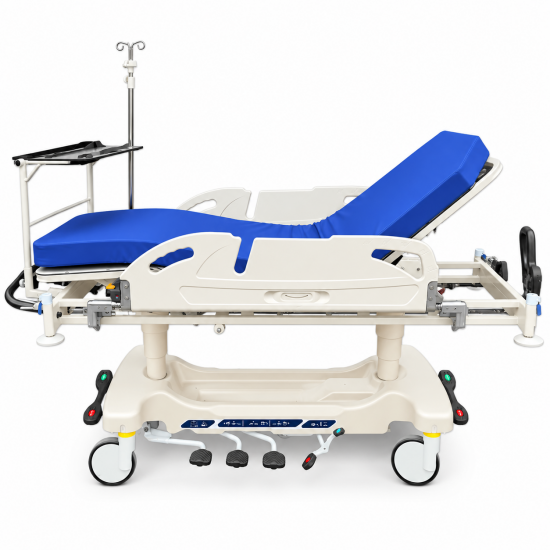

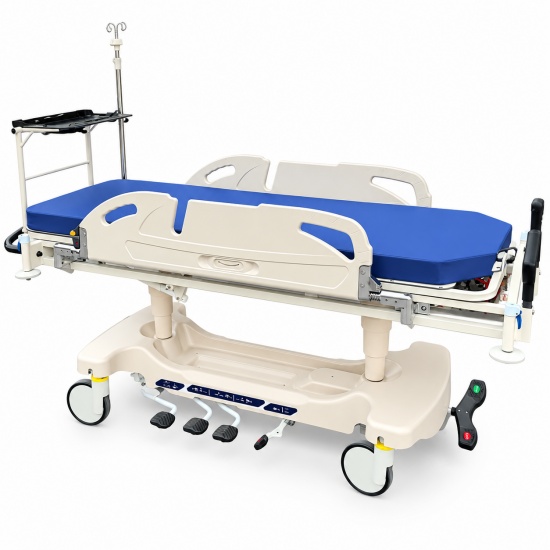

The JH-PC106 Hydraulic Patient Transfer Stretcher Trolley is designed for hospital transportation, patient positioning and bedside care. Equipped with a dual hydraulic cylinder system, it provides overall height adjustment from 550 mm to 870 mm, helping healthcare staff adapt the patient platform to different transfer and nursing requirements.
Its four-section resin platform supports multiple positioning functions, including backrest elevation, knee section adjustment and Trendelenburg and Reverse Trendelenburg positioning. The rotating side rails can be folded down horizontally, allowing caregivers to access the patient from four directions.
With four 200 mm casters, a 100 mm directional fifth wheel and a central locking system, the JH-PC106 combines patient positioning and controlled mobility in one multifunctional hospital transfer trolley.
Dual Hydraulic Height Adjustment for Patient Transfer
One of the main features of the JH-PC106 is its dual hydraulic cylinder design, which supports overall stretcher height adjustment.
The patient platform can be raised or lowered between 550 mm and 870 mm. This adjustable height provides flexibility when preparing patients for transfer between hospital beds, stretchers and other compatible medical equipment.
Hydraulic Height Adjustment Range
Minimum Height: 550 mm
Maximum Height: 870 mm
Hydraulic System: Dual hydraulic cylinders
The hydraulic system is operated through foot pedals, allowing caregivers to adjust the trolley height during routine hospital operations.
For hospitals evaluating patient transfer equipment, overall height adjustment is an important specification to consider when matching stretcher height with other patient care equipment.
Multi-Position Patient Platform for Different Care Requirements
The JH-PC106 features a four-section resin patient platform designed to support different patient positioning requirements.

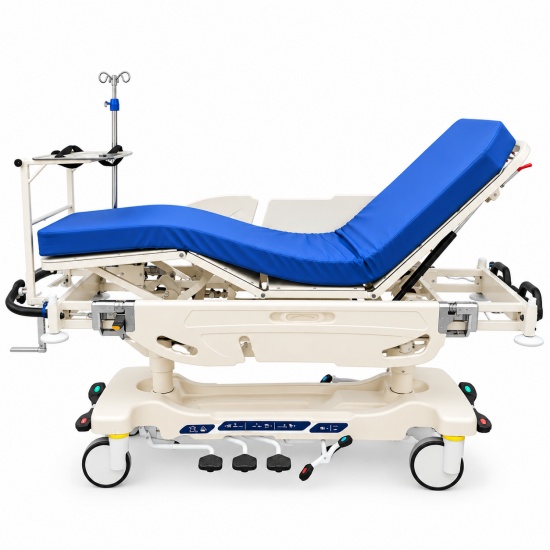

Backrest Adjustment from 0° to 90°
The backrest can be adjusted from 0° to 90° through a pneumatic spring mechanism.
Three red release handles are positioned at the left, center and right sides of the head section. Caregivers can operate the release mechanism to raise or lower the backrest according to the patient's positioning requirements.
This function provides flexibility when patients need to move between flat and more upright resting positions.
Knee Section Adjustment from 0° to 40°
The knee section supports manual adjustment from 0° to 40° through a hand-crank mechanism.
The crank is equipped with an over-cranking protection function, helping prevent excessive operation of the adjustment mechanism.
Trendelenburg and Reverse Trendelenburg Positioning
The complete patient platform supports head-down and head-up tilting from -18° to +18°.
This allows the trolley to provide Trendelenburg and Reverse Trendelenburg positioning when required by the patient's care plan.
Angle indicators are installed on both sides of the trolley to help caregivers identify the platform's inclination angle.
Adjustable Foot Section
The foot section also features an adjustable angle function, providing additional positioning flexibility beyond the backrest and knee section adjustments.
The exact foot section adjustment angle should be confirmed against the detailed product specification.
Rotating Side Rails for Four-Direction Nursing Access
The JH-PC106 is equipped with two rotating side rails designed to provide convenient access to the patient during nursing procedures.
Fold-Down Side Rail Structure
The side rails can rotate and fold down into a horizontal position. When lowered, the overall width of the stretcher can reach 1250 mm according to the supplied specification.
This configuration provides caregivers with access to the patient from four directions, making it practical for bedside nursing, patient repositioning and transfer-related procedures.
T-Shaped Side Rail Panels
The side rails feature a T-shaped panel design and a W-shaped safety locking mechanism.
The locking structure helps secure the side rails in their intended operating positions.
Side Rail Load Capacity
The specified side rail load capacity is at least 10 kg. This specification should be considered when evaluating the side rail structure and its intended use.
For patient protection, the side rails should be correctly positioned and secured according to the manufacturer's operating instructions.
Central Locking System and Directional Fifth Wheel
Controlled movement is an important consideration when selecting a hospital patient transfer trolley. The JH-PC106 combines a central braking system, four large casters and an additional directional fifth wheel.
Four 200 mm Main Casters
The trolley is equipped with four 200 mm casters designed for hospital transportation.
The large caster configuration supports trolley mobility during movement between hospital rooms and patient care areas.
Central Locking System
A centrally controlled braking system allows all four main casters to be secured simultaneously.
Operating pedals are positioned at the front, rear, left and right sides of the trolley, allowing caregivers to operate the braking and directional control system from different positions.
This arrangement provides convenient access to the braking controls during patient transfer and bedside operations.
100 mm Directional Fifth Wheel
An additional 100 mm directional fifth wheel is installed in the center of the chassis.
Its guiding function helps improve directional control when moving the trolley, particularly during straight-line transportation through hospital corridors.
Reinforced Steel Frame with Dual Surface Treatment
The JH-PC106 uses a high-quality steel frame with an electrophoretic treatment and powder coating process.
This dual surface treatment provides a protective finish for the metal structure and is designed for the demanding operating environment of professional healthcare facilities.
Four-Section Resin Patient Platform
The patient platform is constructed from resin material and divided into four sections.
The sectional structure supports the different backrest, knee and overall platform positioning functions.
Load Capacity of at Least 320 kg
The specified load capacity of the JH-PC106 is at least 320 kg.
This makes load capacity an important point for hospital purchasing teams evaluating the trolley against their patient transfer equipment requirements.
Integrated Medical Accessories for Hospital Transportation
In addition to its main transfer and positioning functions, the JH-PC106 includes several accessories designed to support routine hospital operations.
Two Foldable IV Poles
One foldable, height-adjustable IV pole is provided at the head end and another at the foot end.
The two-pole configuration provides additional flexibility for different patient transfer arrangements.
Movable Documentation Table
A documentation table measuring approximately 300 mm × 400 mm is installed at the foot end.
The tabletop can be positioned horizontally facing either direction, providing a convenient surface for relevant documentation activities.
Oxygen Cylinder Storage
A designated oxygen cylinder positioning slot is integrated into the lower chassis tray to provide a specified storage location during patient transportation.
Ergonomic Push Handles
The trolley features ergonomic push handles, with a P-shaped configuration at the head end and a U-shaped configuration at the foot end.
These handles provide designated gripping positions for caregivers when maneuvering the trolley.
Four Corner Bumper Wheels
Four corner bumper wheels are installed to help reduce direct impact between the trolley structure and nearby walls or equipment during movement.
Why Choose the JH-PC106 for Hospital Patient Transfer?
Multiple Functions in One Transfer Trolley
The JH-PC106 combines hydraulic height adjustment, backrest elevation, knee section adjustment and whole-platform tilting in one integrated product.
Convenient Access during Nursing Procedures
The rotating side rails can be folded down horizontally, providing access to the patient from four directions.
Controlled Mobility
Four 200 mm casters, a central braking system and a 100 mm directional fifth wheel provide an integrated mobility and steering configuration.
Additional Medical Accessories
Two IV poles, a documentation table, oxygen cylinder storage and ergonomic push handles are included in the product configuration.
High Load Capacity
With a specified load capacity of at least 320 kg, the JH-PC106 can be evaluated for hospital transfer applications requiring a higher-capacity stretcher trolley.
Technical Specifications of JH-PC106
Model: JH-PC106
Product Name: Hydraulic Patient Transfer Stretcher Trolley
Product Category: Patient Transfer Equipment
Frame Material: High-quality steel
Surface Treatment: Electrophoresis and powder coating
Patient Platform: Four-section resin platform
Platform Length: 1920 mm
Overall Length: 2150 mm
Platform Width: 620 mm
Overall Width: 870 mm
Height Adjustment: 550–870 mm
Hydraulic System: Dual hydraulic cylinders
Backrest Adjustment: 0°–90°
Knee Section Adjustment: 0°–40°
Trendelenburg / Reverse Trendelenburg: -18° to +18°
Foot Section: Adjustable angle
Load Capacity: ≥320 kg
Side Rails: Two rotating fold-down side rails
Folded Side Rail Width: 1250 mm
Side Rail Load Capacity: ≥10 kg
Main Casters: 4 × 200 mm
Directional Fifth Wheel: 100 mm
Braking System: Central locking system
Corner Protection: Four bumper wheels
Mattress Thickness: 80 mm
Mattress Dimensions: 1880 × 620 × 80 mm
Standard Accessories: Two foldable IV poles, documentation table, oxygen cylinder storage, ergonomic push handles and mattress.
Applications in Hospitals and Healthcare Facilities
Hospital Patient Transfer
The JH-PC106 can be considered for transferring patients between hospital departments, examination areas and compatible patient care equipment.
Emergency Departments
Its adjustable patient platform, hydraulic height control and central braking configuration provide features that emergency departments can evaluate when selecting patient transfer equipment.
ICU and Critical Care Areas
The multi-position platform, fold-down side rails and integrated medical accessories provide a configuration that can be evaluated for ICU transfer and bedside care applications.
Hospital Medical Equipment Procurement
Medical equipment distributors, hospital purchasing departments and project contractors can evaluate the JH-PC106 according to their required load capacity, positioning functions, mobility and accessory configuration.
What Should Buyers Confirm Before Ordering?
Check the Required Platform Dimensions
Confirm the platform dimensions and overall trolley dimensions against the available hospital space and transportation requirements.
Verify the Adjustment Functions
Review the backrest, knee section, overall height and Trendelenburg adjustment ranges against the project specifications.
Confirm the Side Rail Configuration
Check the rotating side rail design, folding width and locking mechanism to ensure the configuration matches the intended nursing procedures.
Review Caster and Braking Requirements
Confirm the four 200 mm main casters, 100 mm directional fifth wheel and central locking system.
Check Accessories and Mattress Configuration
Verify the two IV poles, documentation table, oxygen cylinder storage, push handles and 80 mm mattress included in the standard configuration.
Hydraulic Patient Transfer Equipment from Heyuan
Hebei Heyuan Medical Equipment Co., Ltd. is a medical equipment manufacturer with approximately 20 years of manufacturing experience, supplying hospital beds, patient transfer equipment, nursing beds and related medical furniture to international markets.
We support OEM/ODM cooperation and project-based purchasing requirements for medical equipment distributors, hospitals and healthcare organizations.
Explore our Patient Transfer Equipment collection to discover additional hydraulic stretchers, transfer trolleys and hospital transportation equipment.
For related hospital beds and patient care equipment, visit our Hospital Bed collection.
For technical specifications, product quotations, bulk orders or OEM/ODM cooperation, contact our team with your project requirements.
