Hydraulic Patient Transport Stretcher Trolley for Hospitals
This hydraulic patient transport stretcher trolley is designed for patient transportation, positioning and transfer preparation in hospitals, emergency departments and professional healthcare facilities. It combines hydraulic height adjustment, gas spring-assisted backrest positioning, a central braking system and an independent retractable fifth wheel in one mobile patient transport platform.
The stretcher features a carbon steel frame, an ABS patient platform and height-adjustable ABS side rails. With a safe working load of 320 kg and an adjustable platform height of 670–970 mm, it provides a practical configuration for hospital departments requiring a mobile stretcher with multiple positioning and transportation functions.
Hydraulic Height Adjustment for Patient Transportation
The stretcher is equipped with a hydraulic lifting system that allows the patient platform to be raised or lowered between 670 mm and 970 mm.
The adjustable height provides flexibility when positioning the stretcher beside compatible hospital beds or other medical equipment during patient transfer preparation.
Hydraulic Lifting Specifications
- Minimum height: 670 mm
- Maximum height: 970 mm
- Height adjustment range: 300 mm
- Lifting mechanism: Hydraulic cylinder system
The hydraulic lifting mechanism operates without an electrically powered height adjustment motor.

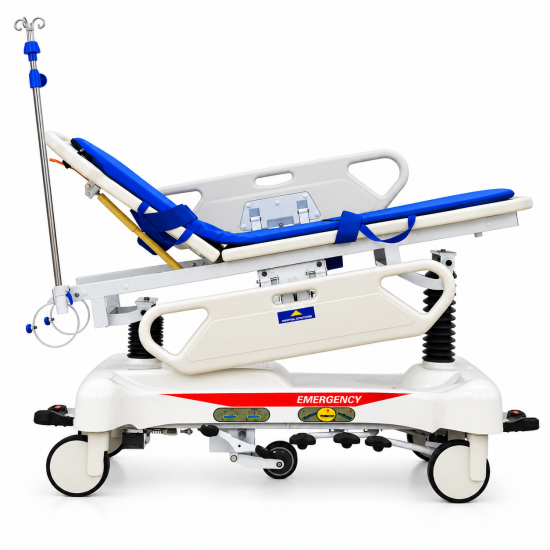

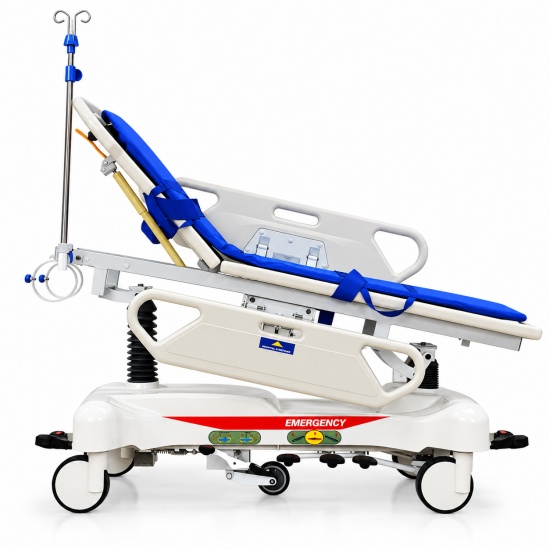

Front and Rear Platform Tilting
The stretcher also supports front-to-rear platform tilting with a specified adjustment angle of 0°–18°.
This function provides an additional whole-platform positioning option for appropriate hospital care procedures.
The direction and operating range of platform tilting should be confirmed according to the manufacturer's technical instructions before clinical use.
Patient Transport and Directional Control System
The stretcher is equipped with four 200 mm main casters, a central braking system and an independent retractable fifth wheel.
These components form the main mobility system for moving and positioning the stretcher within hospital transportation areas.
Four 200 mm Central Locking Casters
Four 200 mm casters provide rolling support for the stretcher during patient transportation.
The central braking system allows the four casters to be locked simultaneously through a foot-operated control mechanism.
Brake control mechanisms are positioned at the four corners of the stretcher, allowing healthcare staff to operate the system from different positions.
One-Step Central Braking
The stretcher uses a coordinated central braking arrangement.
When the braking mechanism is engaged, the four main casters are locked together to help prevent unintended movement during stationary positioning.
The central brake linkage incorporates an integrally formed round-tube structure designed to provide mechanical strength.
Independent Retractable Fifth Wheel
An independent fifth wheel system is installed beneath the stretcher chassis.
Control pedals are provided on both sides of the stretcher for operating the fifth wheel.
When the fifth wheel is retracted, the stretcher can move freely on its four main casters. When the fifth wheel is engaged, it provides directional guidance for straight-line transportation.
This configuration assists caregivers in controlling the direction of movement when transporting patients through hospital corridors and designated transportation routes.
Gas Spring-Assisted Backrest Adjustment
The stretcher features a split patient platform with a gas spring-assisted backrest adjustment mechanism.
The backrest can be raised from a horizontal position to an angle of 75° ±5°.
The gas spring mechanism supports convenient adjustment and can be operated with one hand.
Backrest Positioning Specifications
- Backrest adjustment: 0–75° ±5°
- Adjustment mechanism: Gas spring-assisted
- Operation: Single-hand adjustment
The adjustable backrest provides different upper-body positioning options during patient transportation and routine hospital care.
ABS Patient Platform
The patient platform is manufactured from ABS engineering plastic and incorporates a split-section structure for backrest adjustment.
ABS material provides a practical surface for hospital patient transportation equipment, with corrosion resistance and toughness specified in the product design.
Patient Platform Dimensions
- Overall stretcher length: 1930 mm
- Patient platform length: 1910 mm
- Patient platform width: 640 mm
Integrated Corner Handles
The ABS patient platform incorporates handles at its four corners.
These handles provide additional gripping positions for healthcare personnel during stretcher operation and patient transportation.

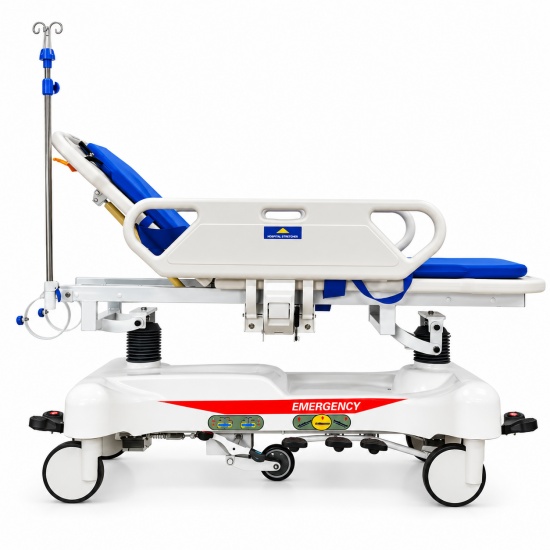

Height-Adjustable ABS Side Rails
The stretcher is equipped with ABS side rails featuring a pull-up and lowering mechanism.
The side rails can be raised when patient protection is required and lowered to provide access to the patient platform during transfer preparation or bedside care.
Gas Spring-Damped Lowering
The side rail lowering mechanism incorporates gas spring damping.
This design provides controlled lowering movement and helps reduce abrupt rail movement during operation.
Side Rail Dimensions
- Side rail material: ABS engineering plastic
- Side rail length: 1080 mm
- Side rail height: 260 mm
- Side rail thickness: 35 mm
- Lowering mechanism: Gas spring-damped
The side rails should be properly raised and secured before patient transportation according to the manufacturer's operating instructions.
Carbon Steel Frame with Powder-Coated Finish
The stretcher frame is manufactured from high-quality carbon structural steel sections joined through welding.
The steel structure undergoes surface rust removal followed by electrostatic resin powder coating.
This protective finish provides corrosion resistance and a clean appearance suitable for hospital equipment.
320 kg Safe Working Load
The stretcher has a specified safe working load of 320 kg.
This load rating is an important technical consideration for hospital purchasing departments and medical equipment distributors evaluating patient transportation equipment.
Integrated Lower Storage Tray
An integrated storage tray is installed beneath the patient platform.
The tray provides space for carrying compatible accessories, including an oxygen cylinder, during hospital transportation.
The specified tray load capacity is 10 kg.
Water-Resistant Mattress with Removable Cover
The stretcher is supplied with a mattress featuring a water-resistant fabric surface treatment.
The mattress cover includes a zipper and can be removed for washing.
This configuration supports routine mattress maintenance and cleaning in professional healthcare facilities.
Technical Specifications
General Specifications
- Product Type: Hydraulic Patient Transport Stretcher Trolley
- Overall Dimensions: 1930 × 640 × 670–970 mm
- Patient Platform Dimensions: 1910 × 640 mm
- Height Adjustment: 670–970 mm
- Safe Working Load: 320 kg
- Frame Material: Carbon structural steel
- Frame Surface Treatment: Electrostatic resin powder coating
- Patient Platform Material: ABS engineering plastic
Adjustment Functions
- Height Adjustment System: Hydraulic cylinder
- Backrest Adjustment: 0–75° ±5°
- Backrest Mechanism: Gas spring-assisted
- Front and Rear Platform Tilting: 0°–18°
Side Rails and Mobility
- Side Rail Material: ABS engineering plastic
- Side Rail Type: Pull-up height-adjustable design
- Side Rail Dimensions: 1080 × 260 × 35 mm
- Side Rail Lowering: Gas spring-damped
- Main Casters: 4 × 200 mm
- Braking System: Central locking system
- Brake Controls: Four-corner control arrangement
- Directional System: Independent retractable fifth wheel
- Fifth Wheel Controls: Both sides of the stretcher
Accessories and Packaging
- Lower Storage Tray: Integrated design
- Storage Tray Load Capacity: 10 kg
- Mattress: Water-resistant fabric with removable washable cover
- Wooden Crate Dimensions: 2020 × 835 × 760 mm
- Net Weight: 95 kg
- Gross Weight: 145 kg
Applications in Hospital Patient Transportation
General Hospital Departments
The hydraulic lifting system, adjustable backrest and central braking configuration support routine patient transportation and positioning in hospital departments.
Emergency Departments
The mobile stretcher configuration, adjustable patient platform and independent fifth wheel provide functions that emergency departments can evaluate for patient transportation requirements.
Patient Transfer Areas
The adjustable platform height and ABS side rails provide practical features for preparing patient transfers between compatible hospital beds and other medical equipment.
Hospital Corridors and Internal Transportation
The four 200 mm casters and retractable fifth wheel provide mobility and directional guidance during movement along designated hospital transportation routes.
